2501-L JIC to Pipe Long Elbow 90° | Male JIC x Male NPT

2501-L JIC to Pipe Long Elbow 90° for Added Clearance

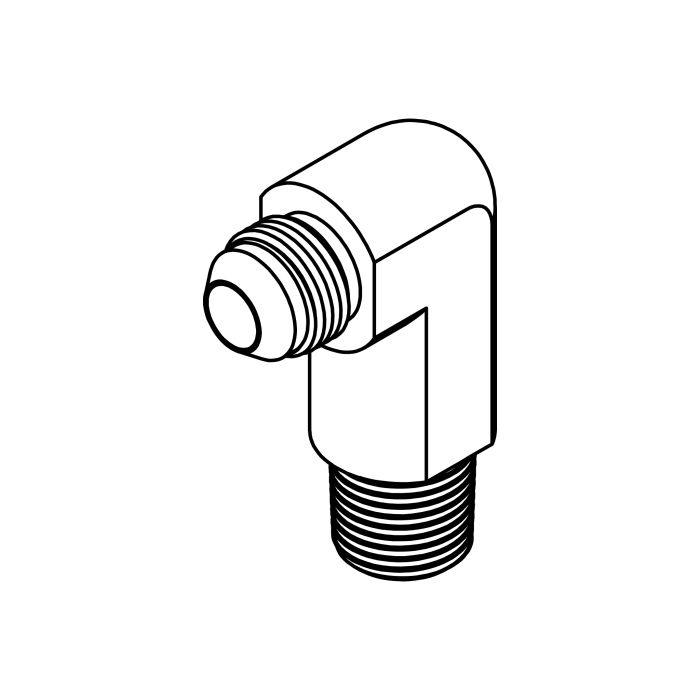

The 2501-L JIC to Pipe Long Elbow 90° is designed for hydraulic connections that require more than a standard 90-degree turn. It combines a 37° Male JIC connection with a Male NPT pipe thread while using a longer elbow configuration to provide additional clearance between connected components.

Where a standard elbow may place the connection too close to surrounding equipment, the extended design of the 2501-L JIC to Pipe Long Elbow 90° provides more room for hydraulic line routing. This makes the fitting especially useful when the position of a hose, tube, pump, valve, or other component requires additional spacing.

The collection offers multiple size combinations, allowing customers to match both the JIC and pipe thread requirements of their hydraulic assembly.

Fitting Type: JIC to Pipe Long Elbow

Connection: 37° Male JIC x Male NPT

Configuration: 90° Long Elbow

Material: Carbon Steel

Available Sizes: Multiple size combinations

More Than a Standard 90° Elbow

The main difference between the 2501-L JIC to Pipe Long Elbow 90° and a standard 90° elbow is its extended body. Both fittings change the direction of the hydraulic connection, but the long elbow configuration adds extra reach.

That additional clearance can help when a connection needs to extend farther away from an obstruction or when the hydraulic line requires a more suitable routing position. The longer configuration may also provide greater installation flexibility compared with a standard elbow in assemblies where space around the connection is limited.

Rather than using additional fittings to create more separation, a dedicated long elbow provides the JIC-to-pipe transition and 90° directional change in one component.

Connecting JIC and Pipe Threaded Components

One side of the 2501-L JIC to Pipe Long Elbow 90° uses a 37° male JIC connection, while the other side uses a male NPT pipe thread. This allows the fitting to bridge two different connection styles within the same hydraulic or fluid transfer assembly.

The JIC side should be matched with the appropriate compatible JIC connection, while the NPT side should match the corresponding female pipe-threaded component. Since the fitting performs both a connection transition and a directional change, both sides of the assembly should be checked individually.

Customers should not select the fitting based only on the elbow shape. The JIC size and NPT thread size are equally important when choosing the correct configuration.

Designed for Better Hose and Line Routing

The long elbow design is particularly relevant where standard hydraulic routing creates clearance issues. The extended shape can provide additional space around the connection and help position the hydraulic line according to the layout of the equipment.

Applications for the 2501-L JIC to Pipe Long Elbow 90° include hydraulic hose assemblies, cylinders, pumps, valves, construction equipment, agricultural machinery, industrial hydraulic systems, and mobile hydraulic equipment.

In these applications, the fitting can be useful where the connection must make a 90° turn while also extending beyond the position offered by a standard elbow.

Carbon Steel Construction

The 2501-L JIC to Pipe Long Elbow 90° collection is manufactured from carbon steel. The fitting is designed as a Male JIC x Male NPT adapter with a long 90-degree elbow configuration.

When selecting the correct option, customers should consider the complete connection layout. The fitting needs to provide the required JIC connection, pipe thread, size combination, and additional clearance for the installation.

Because the collection includes multiple sizes, the correct choice depends on the requirements at both ends of the hydraulic assembly.

Choosing the Right Long Elbow Configuration

Start by confirming that the hydraulic assembly requires a compatible 37° Male JIC x Male NPT connection. Then determine whether a standard elbow provides enough clearance or if the extended reach of the 2501-L JIC to Pipe Long Elbow 90° is better suited to the equipment layout.

Check the JIC size and NPT thread size separately before ordering. Also consider the position of surrounding components and the routing path of the hydraulic line.

The 2501-L JIC to Pipe Long Elbow 90° collection provides a dedicated option for applications that need a JIC-to-pipe transition, a 90° directional change, and additional installation clearance. Choose the appropriate size combination to match your hydraulic connection and routing requirements.
