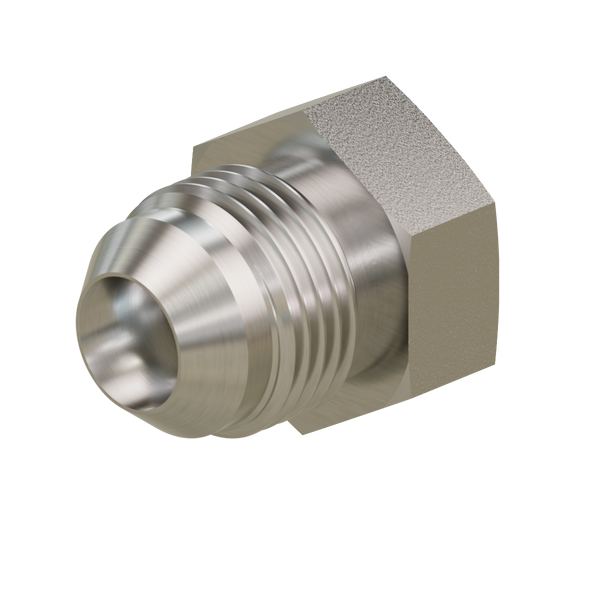

2408 JIC Plug

2408 JIC Plug for 37° Hydraulic Connections

The 2408 JIC Plug is designed for closing compatible 37° JIC hydraulic connections. It is a dedicated hydraulic fitting component for applications where an open JIC connection needs to be plugged as part of a hydraulic assembly, maintenance process, or system configuration.

The collection includes multiple sizes, allowing customers to select the appropriate 2408 JIC Plug based on their existing connection requirements. Proper identification of the fitting size and connection type is important before choosing a plug, as hydraulic components should be matched according to the requirements of the complete assembly.

Fitting Type: JIC Plug
Connection Type: 37° JIC
Material: Steel
Additional Material Option: Stainless Steel Type 316
Steel Material: Bar Stock 12L14, 1045, Cold Formed 1010
Plating: Clear Zinc Trivalent
Finish: Passivated
Working Pressure: Up to 5000 PSI, depending on tube and fitting size

Designed for JIC Hydraulic Connections

The 2408 JIC Plug is intended for compatible JIC hydraulic systems using a 37° flare connection. Selecting the correct plug requires confirming the existing fitting type and the required size before ordering.

JIC connections use a 37° flare design, which should be identified correctly when selecting related hydraulic components. Similar-looking fittings may use different thread or sealing designs, so they should not automatically be considered interchangeable.

The available size options in the 2408 JIC Plug collection make it important to review the existing connection carefully. Matching the plug with the correct JIC fitting size helps customers choose the appropriate component for their hydraulic assembly.

Material and Protective Finish

The 2408 JIC Plug collection lists steel and Stainless Steel Type 316 material options. The steel material information includes Bar Stock 12L14, 1045, and Cold Formed 1010.

Clear Zinc Trivalent plating and passivation are also listed as part of the product information. These details provide useful information for customers comparing available hydraulic fitting options and selecting a component based on their application requirements.

Before making a final selection, customers should review the fitting size, material requirements, and connection details together rather than relying on one specification alone.

Applications for High-Pressure Hydraulic Systems

The 2408 JIC Plug is listed for use with machine tools, agricultural machinery, earth-moving equipment, instrumentation, chemical processing systems, and other high-pressure hydraulic applications.

It can be considered when a compatible JIC connection needs to be closed within a hydraulic system. Applications may involve equipment assembly, maintenance, servicing, or other situations where the correct hydraulic plug is required for an existing JIC connection.

Because hydraulic systems can vary in fitting size and operating requirements, the correct 2408 JIC Plug should be selected according to the specific system and connection involved.

Pressure Considerations

The collection lists working pressures of up to 5000 PSI, with actual working pressure varying depending on the tube and fitting size. Applications operating at extreme pressures of 5000 PSI or above should be evaluated according to their specific system requirements.

Pressure requirements should always be considered alongside the complete fitting assembly. Selecting the correct size and compatible connection is an important part of choosing the appropriate 2408 JIC Plug for a hydraulic application.

How to Select the Right 2408 JIC Plug

Before selecting a 2408 JIC Plug, inspect the existing hydraulic connection and confirm that it uses a compatible 37° JIC fitting. Then identify the required size and review the material and application requirements.

Do not choose a hydraulic plug based only on its appearance. Connection type, fitting size, and pressure requirements should all be considered before ordering. Different hydraulic fitting systems can use different thread and sealing designs.

If replacing an existing plug, compare the current component with the required connection and size details. For a new hydraulic assembly, verify that the selected 2408 JIC Plug is appropriate for the complete system.

Choose the Right 2408 JIC Plug

The 2408 JIC Plug collection provides multiple size options for closing compatible 37° JIC hydraulic connections. With listed steel and stainless steel material options, Clear Zinc Trivalent plating, passivation, and suitability for high-pressure applications, the collection offers dedicated options for JIC hydraulic systems.

Choose the appropriate 2408 JIC Plug by confirming your JIC connection type, required fitting size, material needs, and pressure requirements before ordering.
