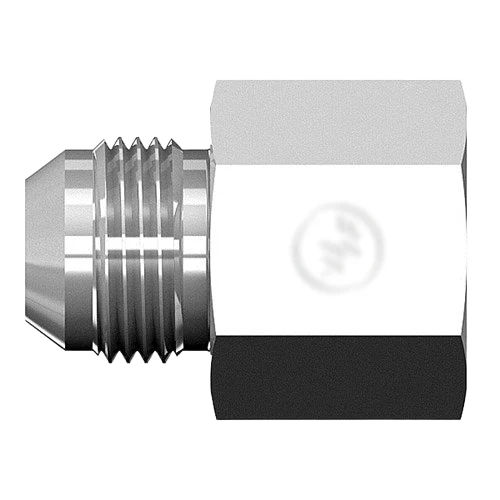

2405SS Male JIC/AN to Female NPSM Pipe Connector - Stainless Steel
Description
The 2405SS Male JIC (AN) to Female NPSM Pipe Connector collection consists of precision-engineered straight hydraulic adapters manufactured from 316 stainless steel for demanding fluid power applications.
These fittings are designed to connect a Male JIC 37-degree flare interface to a Female NPSM pipe thread port, providing a reliable transition between flare-type hydraulic tubing and straight pipe thread connections.
Design & Material Overview
All adapters in the 2405SS collection are manufactured from forged 316 stainless steel, offering excellent resistance to corrosion, oxidation, and chemical exposure. The forged straight configuration enhances mechanical strength and minimizes potential stress points.
The Male JIC 37-degree flare provides a proven sealing method widely used in hydraulic and fluid transfer systems, while the Female NPSM pipe thread allows integration with straight pipe ports where sealing occurs with proper mating surfaces.
Key design characteristics include:
- Male JIC / AN 37-degree flare connection
- Female NPSM straight pipe thread port
- Forged straight adapter body
- Non-reactive 316 stainless steel material
- Compliance with SAE 070103
Industries & Use Cases
2405SS stainless steel JIC to NPSM connectors are commonly used in:
- Hydraulic systems exposed to corrosive fluids
- Chemical processing equipment
- Marine and offshore hydraulic installations
- High-temperature industrial fluid lines
- OEM hydraulic and pneumatic assemblies
- Food, beverage, and pharmaceutical equipment
These industries require fittings that maintain sealing integrity while resisting corrosion, vibration, and thermal cycling.
Applications
- Connecting JIC hydraulic tubing to NPSM pipe ports
- Stainless steel hydraulic and fluid transfer systems
- High-pressure hose and tube assemblies
- Industrial machinery and process equipment
- Corrosion-resistant hydraulic connections
Engineers and maintenance professionals select these stainless steel connectors for systems where chemical resistance, cleanliness, and durability are critical. The straight forged body design supports compact installations while maintaining proper alignment between hydraulic components.
